MBBR
Description
MBBR Media – Product Details
Product Name: MBBR Media
Company Name: REVA FLOWTECH
Product Description

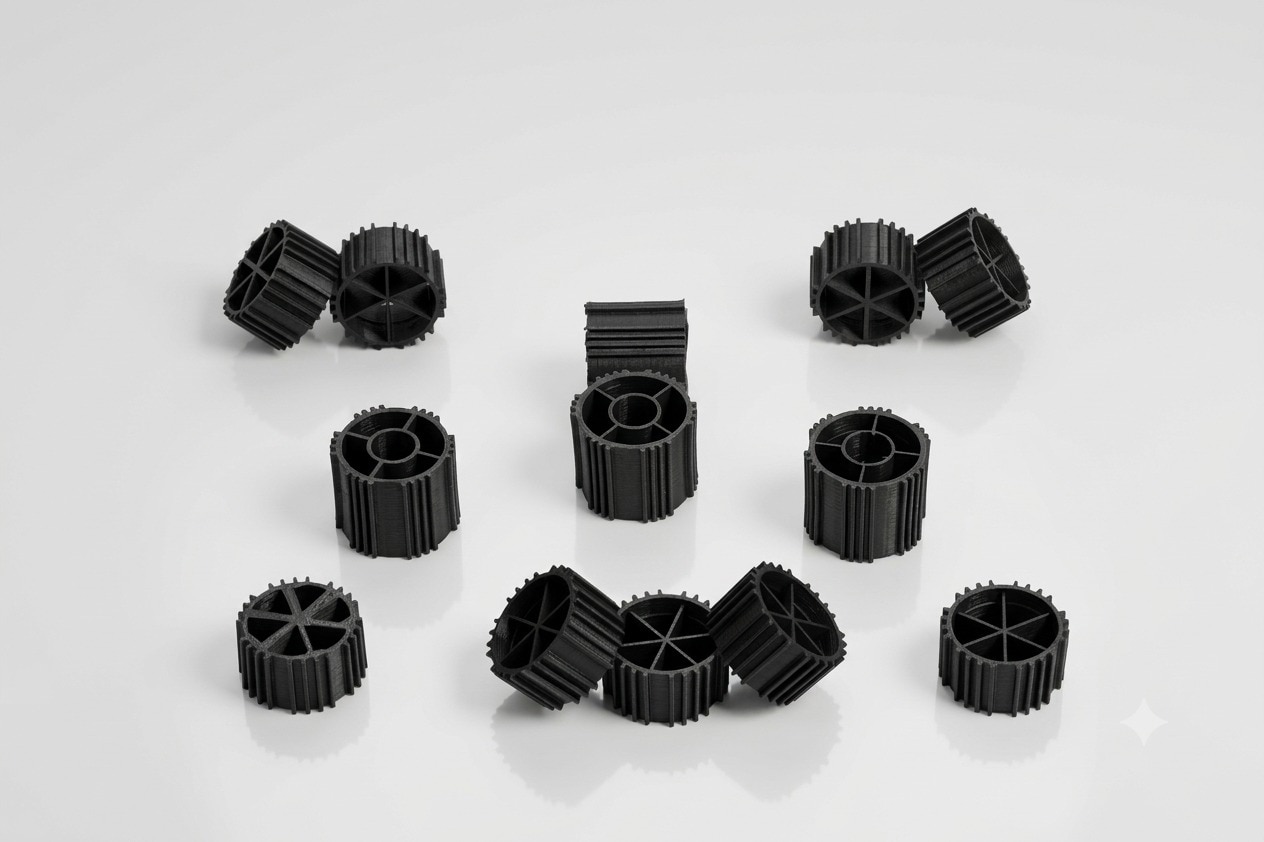

MBBR Media (Moving Bed Biofilm Reactor Media) is a biological filter media used in wastewater treatment systems. The media remains suspended and moves within the aeration tank, providing a large surface for microorganisms to attach and form biofilm. This supports the biological removal of BOD, COD and ammonia from wastewater.
Key Features
High surface area for biofilm growth
Excellent microbial attachment
Lightweight and free-moving design
Good oxygen and water contact
Helps improve biological treatment efficiency
Suitable for upgrading existing treatment plants
Durable and chemically resistant
Low maintenance
Available in different sizes and geometries
Suitable for continuous wastewater treatment operation
Typical Technical Specifications
Specification Typical Details
Media Type MBBR Biofilm Carrier
Material Virgin HDPE / PP
Shape Cylindrical / Multi-room
Media Size Approx. 12–25 mm, model dependent
Specific Surface Area Approx. 400–1,600+ m²/m³
Density Approx. 0.94–0.98 g/cm³
Void Ratio Typically 90%+
Filling Ratio Approx. 15–65%
Colour White / Black / as required
Installation Suspended in aeration tank
Applications STP, ETP, industrial wastewater
These are typical industry ranges, not guaranteed REVA FLOWTECH specifications. Actual surface area, dimensions, material and filling ratio should be finalized according to the selected model and treatment design.
Applications
Sewage Treatment Plants (STP)
Effluent Treatment Plants (ETP)
Industrial wastewater treatment
Municipal wastewater treatment
Biological treatment reactors
BOD & COD reduction
Ammonia/nitrification treatment
Aquaculture and fish farming
Existing STP/ETP capacity upgrades
Advantages
Increases biological treatment capacity
Large surface area for microorganisms
Compact treatment-system design
Improves BOD and COD removal
Supports nitrification
Long service life
Suitable for new and retrofit applications
