TUBE SETTLER MEDIA

Tube Settler Media – Product Details

Product Name: Tube Settler Media

Company Name: REVA FLOWTECH

Product Description

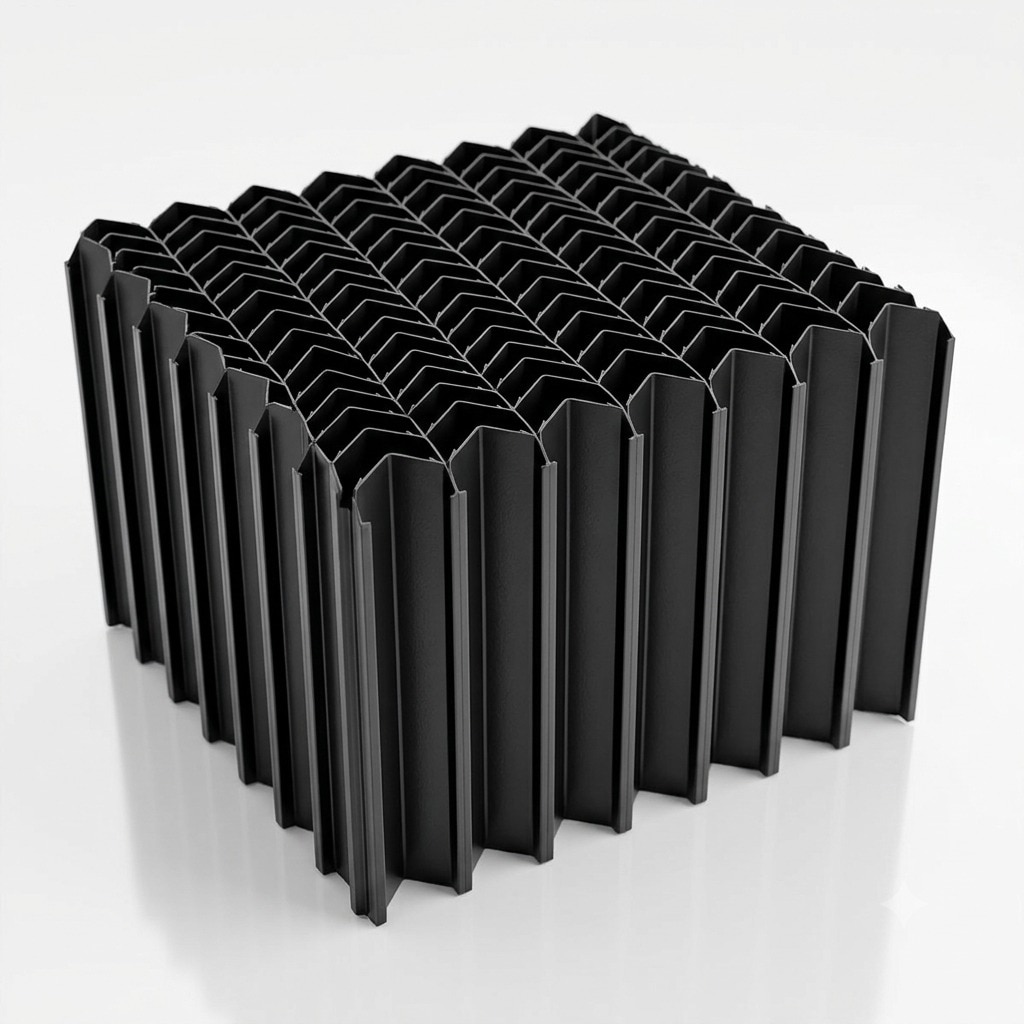

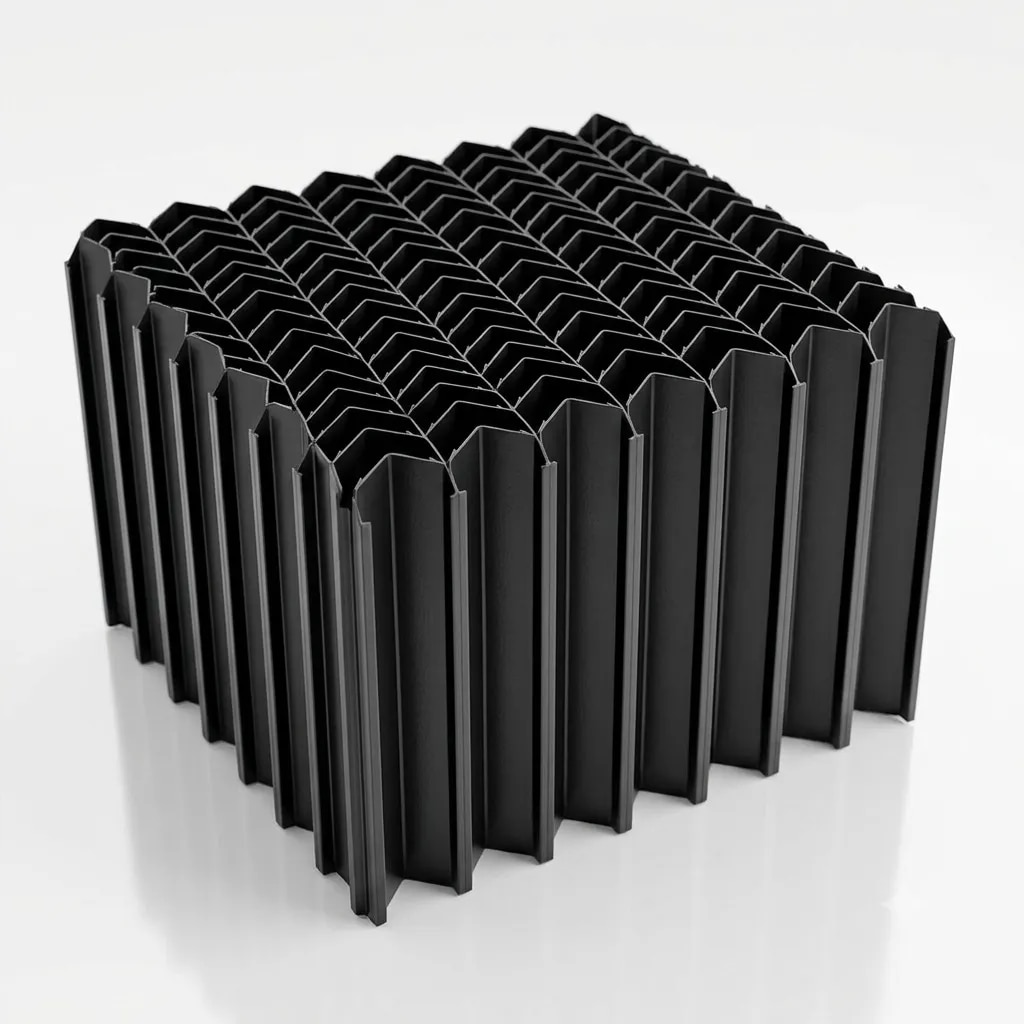

Tube Settler Media is a high-efficiency sedimentation media used in WTP, STP and ETP plants to improve the settling and separation of suspended solids from water and wastewater. The inclined tube arrangement creates a large effective settling area within a compact tank, reducing the distance particles need to travel before settling. 

Key Features

High-efficiency solid-liquid separation

Increases effective settling area

Improves clarifier capacity

Reduces particle settling distance

Compact and space-saving design

Lightweight and easy to install

Low maintenance and no moving parts

Excellent chemical resistance

Available in PVC and PP options

Suitable for new and existing clarifiers

Custom sizes available as per tank requirements

Typical Technical Specifications

Specification Details

Material PVC / PP

Tube Shape Hexagonal / Chevron

Inclination Angle 55°–60°

Tube Size Typically 120 × 44 mm or as required

Thickness Typically 1.0–1.1 mm

Module Size Customizable

Fitting Tongue & Groove / Modular

Color Black / Blue / As required

Installation Inside Clarifier / Settling Tank

Operating Temperature Model/material dependent

These are typical industry specifications; final dimensions, material, thickness and settling area should be selected according to the project design and operating conditions.

Applications

Water Treatment Plants (WTP)

Sewage Treatment Plants (STP)

Effluent Treatment Plants (ETP)

Primary & secondary clarifiers

Industrial wastewater treatment

Chemical precipitation systems

Oil-water separation

Sludge settling systems

Clarifier capacity upgrades

Advantages

REVA FLOWTECH Tube Settler Media helps increase the effective settling surface within an existing tank, allowing improved clarification without necessarily increasing the tank footprint. Its modular construction also makes transportation and installation comparatively easy.
