TUBULAR DIFFUSER
Description
Tubular Diffuser – Product Details

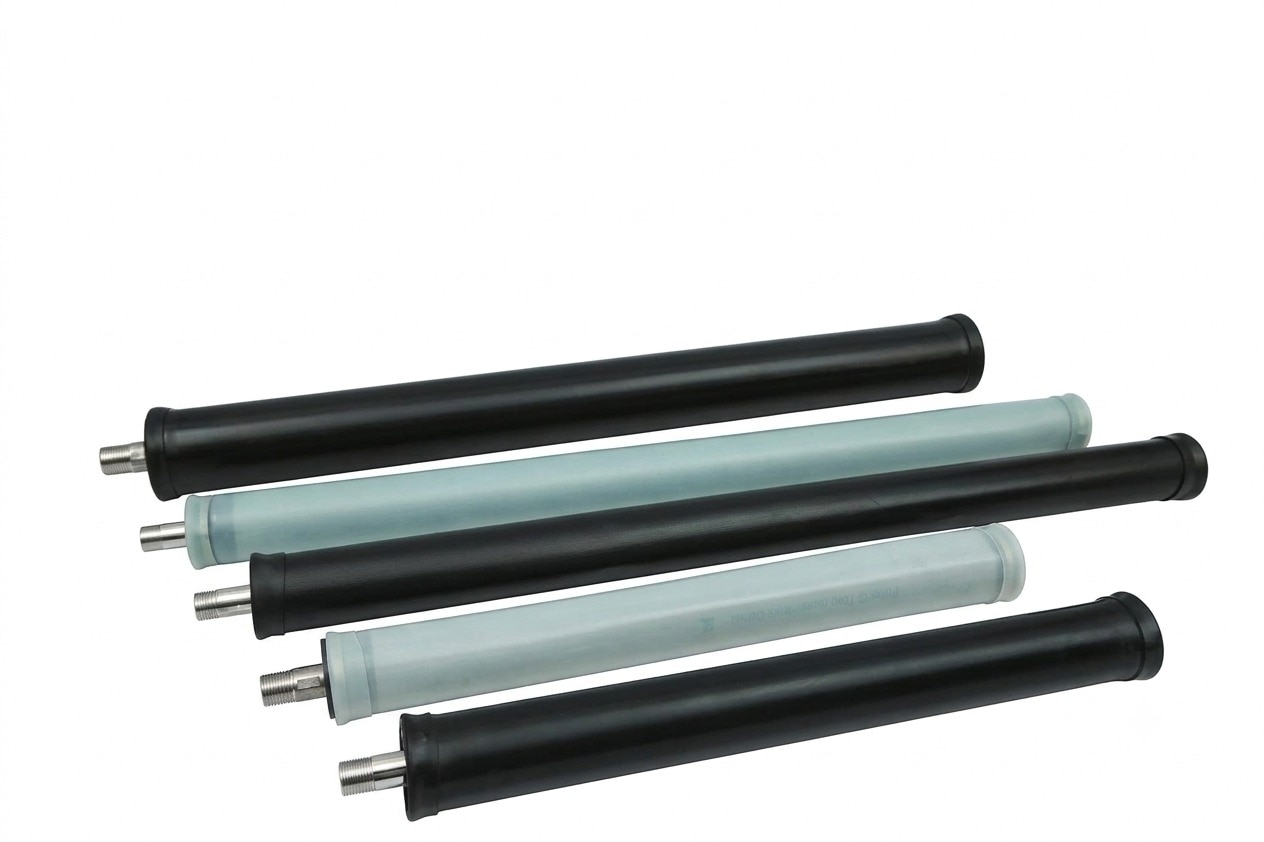

Product Name: Tubular Diffuser
Company Name: REVA FLOWTECH
Product Description
The Tubular Diffuser from REVA FLOWTECH is an aeration component designed for efficient oxygen transfer in wastewater treatment systems. It uses a perforated EPDM or Silicone membrane to produce fine, uniform air bubbles, increasing the contact area between air and wastewater. This supports biological treatment and improves aeration efficiency in STP, ETP and MBBR systems.
Key Features
Fine and uniform bubble generation
High oxygen transfer efficiency
EPDM and Silicone membrane options
Durable and corrosion-resistant construction
Low maintenance requirements
Suitable for continuous aeration
Helps reduce energy consumption
Easy installation and replacement
Available in different diameters and lengths
Suitable for new and existing aeration systems
Typical Technical Specifications
Specification Typical Details
Type Fine Bubble Tubular Diffuser
Membrane Material EPDM / Silicone
Support Material PP / PVC / SS
Diameter 63 mm / 90 mm or as required
Length 620 mm / 1000 mm / customized
Bubble Size Approx. 0.8–1.9 mm
Air Flow Rate Approx. 2–15 m³/hr, model dependent
Connection 3/4" BSP or as required
Installation Aeration Tank / Diffuser Grid
Application STP / ETP / MBBR
These are typical industry specifications, not guaranteed REVA FLOWTECH specifications. Actual dimensions, airflow, pressure and membrane selection should be finalized according to the selected model and treatment design.
Applications
Sewage Treatment Plants (STP)
Effluent Treatment Plants (ETP)
MBBR Treatment Systems
Activated Sludge Processes
Biological Aeration Tanks
Industrial Wastewater Treatment
Municipal Wastewater Treatment
Sludge Stabilization
Aquaculture & Fish Farming
Advantages
Efficient oxygen transfer
Uniform aeration throughout the tank
High-quality membrane construction
Low maintenance
Long service life
Suitable for deep aeration tanks
Helps improve biological wastewater treatment
